Product introduction:

After the residual wind of Raymong machine is separated by a small cyclone, the concentration of dust discharged into the atmosphere will still be as high as 1000 mg, which is dozens to hundreds of times higher than the national emission standard. A large amount of dust is discharged into the atmosphere, causing serious environmental pollution around the plant. With the promulgation and implementation of China's environmental protection law, the use of mill manufacturers are eager to completely solve these 1 problems, in order to achieve dust removal and purification of the environment, in order to improve the relationship with the neighbors.

However, there are nearly a hundred kinds of raw materials for the mill, and its viscosity, moisture and other physical and chemical properties are not the same, and the particle size of the finished product after grinding is very fine, coupled with complex environmental factors such as severe cold and rainy seasons. Therefore, the residual wind dust removal has not been well solved for a long time.

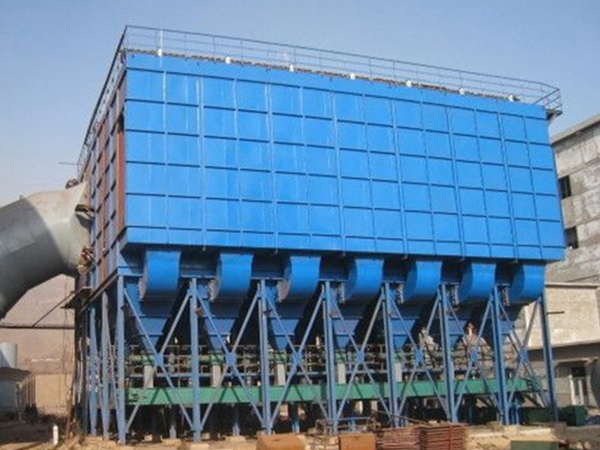

The pulse type flat bag dust collector and Raymon machine can effectively solve the residual wind dust removal after being used, and its efficiency can reach 99%.

working process of dust collector:

The pulse dust collector system consists of a bag filter, an electric control box, a pipeline device and a ventilator.

When the ventilator is started, the dust collector is in a negative pressure state, and the dust-containing air in the residual air pipe is sucked into the upper box of the dust collector, and then the air flow enters the upper opening of the filter bag to flow from top to bottom. Most dust particles pass through the lower opening of the filter bag under the action of gravity and inertial force, settle into the lower box (ash hopper), and the filtered purified gas is discharged into the atmosphere through the ventilator.

While filtering the air, there is still some dust stuck on the inner wall of the filter bag and gradually thickened. At t
